Pillar Jib Crane LS
Pillar Jib Crane LS
Efficient & Space-Saving Lifting by Henan Mine

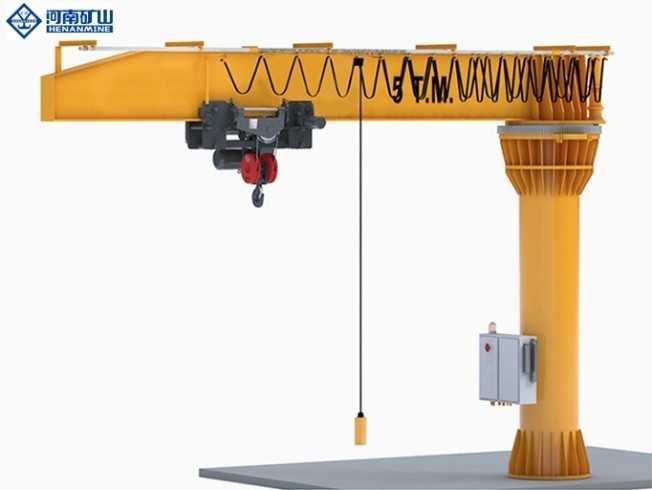

The Henan Mine Pillar Jib Crane LS is a floor-mounted slewing crane designed for local, repetitive material handling in light-duty applications. With a slewing range of up to 270°, a jib arm length of up to 7 meters, and safe working loads (SWL) up to 1 ton, this workstation crane delivers precise, efficient lifting performance—especially in production cells, assembly lines, and tool-handling zones.
Thanks to its freestanding installation, the LS model is ideal for sites where wall-mounted or overhead cranes are not viable. Its smooth manual or powered slewing action and rigid design provide operators with an easy-to-use, cost-effective material handling solution.
| Parameter | Details |
| Lifting Capacity (SWL) | Up to 1.0 ton (1000 kg) |
| Jib Arm Length | Up to 7 meters (customizable) |
| Slewing Range | 270° (adjustable with slewing stops) |
| Mounting Type | Floor-mounted (round dowel plate or anchor bolts) |
| Rotation Type | Manual or electric slewing |
| Hoist Compatibility | Electric chain hoist / Manual chain hoist |
| Surface Requirements | Concrete foundation or custom-anchored floor |
| Control Options | Pendant control / Wireless remote control |
| Work Duty | A3–A5 (light to moderate frequency) |
CUSTOMER PAIN POINTS – SOLVED
| Problem | Henan Mine LS Solution |
| No access to ceiling or structural support | ✅ Freestanding design anchors directly into concrete floor |
| Small workspace or tight production cell | ✅ Compact radius + full slewing coverage |
| Need to lift frequently within a fixed station | ✅ Manual or powered slewing with smooth motion |
| Overkill cost of installing overhead crane | ✅ Low-cost localized lifting solution |
| Concerns over stability and mounting | ✅ Certified mounting hardware for secure, long-term use |
Fill in the form below to get instant access to the cranes catalogue and speak to our technical team for recoomendations
